Household Mold

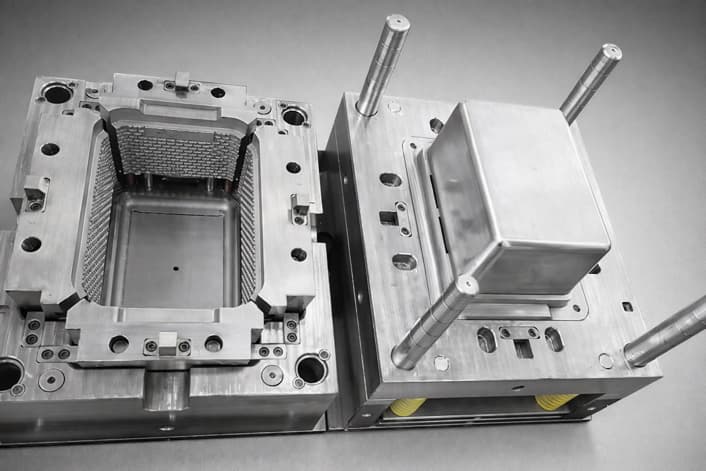

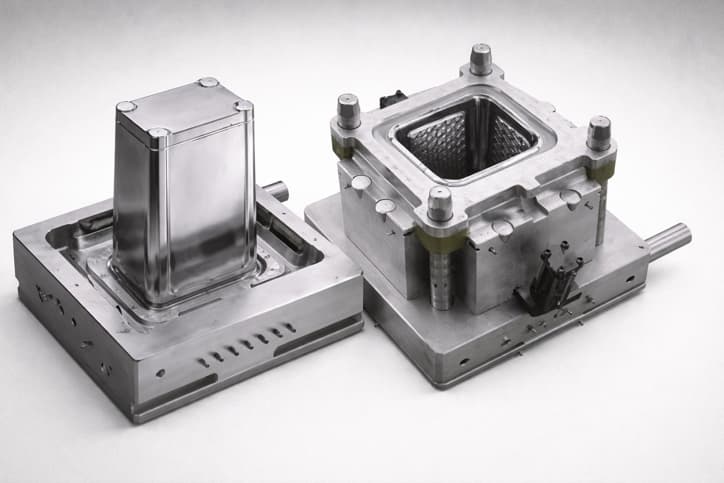

Storage Box Mold
A storage box mold designed for efficient stacking and handling. The lid geometry supports secure closure, and optional wheels can be added for larger sizes. Clear PP is available for visibility where needed.
Cycle Time
40-60 seconds
Mold Life
Typical 300,000-500,000 shots
Material
PP
Key Features
- Secure locking lid
- Optional wheels for large sizes
- Clear PP option
- Nest/stack geometry
- Reinforced handles
Best Fit
- • Home and garage storage
- • Stackable sealed boxes
- • Clear PP variants
Process Notes
- • Lid clip alignment needs verification
- • Clear PP requires higher polish level
- • Wheel mount tolerance affects fit
Design Focus
- • Locking lid
- • Reinforced handles
- • Nest/stack geometry
Technical Specifications
| Capacity Options | 20L / 50L / 80L / 120L |
| Components | Box + Lid + Optional Wheels |
| Steel | P20 / 718H |
| Hardness | 28-32 HRC |
| Runner System | Hot Runner |
| Ejection | Hydraulic |
Applications
Warehouse storage
Home storage
Moving and relocation
Retail back-room
Organized Storage for Home and Warehouse
Storage boxes need secure lids, stable stacking, and easy handling. This mold targets clean lid fit and reinforced sidewalls for daily use.
Typical Use
Warehousing, retail back-room storage, moving, and home organization where stacking and clear visibility are helpful.
Lid Fit + Stack Stability
We tune the lid fit to lock securely while keeping the box easy to open and close. Stacking stability comes from interlocking lid geometry and reinforced sidewalls.
Key Engineering Points
- Locking lid fit tuned for secure closure
- Stacking geometry to prevent sliding
- Optional wheel mounts for large sizes
Why Choose Our Storage Box Mold
Complete mold family: box + lid + wheels + dividers
4-corner snap clip with high-cycle design
Clear PP compatible with A-1 polish finish
Up to 5-high stacking with full loads (application dependent)
Frequently Asked Questions
Common questions about our Storage Box Mold
Can the box be produced in transparent material?
Yes. Clear PP is supported with appropriate polish and processing.
How does the lid lock?
We can use snap clips or latch designs based on the security level you want.
Are wheels included?
Wheels are optional and can be produced in a separate accessory mold.
Is the box stackable?
Yes. The lid geometry supports stable stacking; limits depend on load weight and handling.
Can dividers be added?
Yes. Divider inserts can be added as optional tooling.
Which colors are recommended?
Transparent, white, and neutral colors are common; UV stabilizer is recommended for light colors.
