FeaturedHousehold Mold

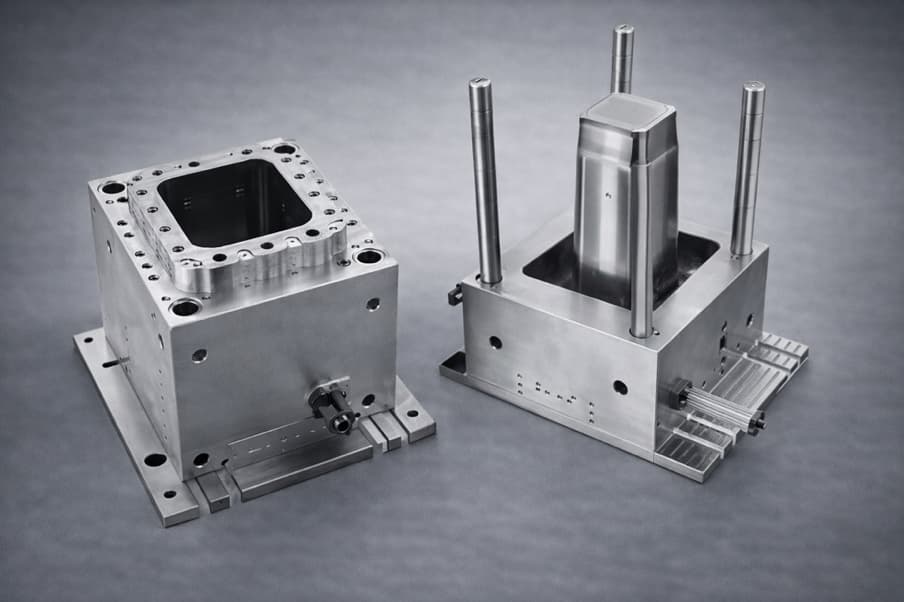

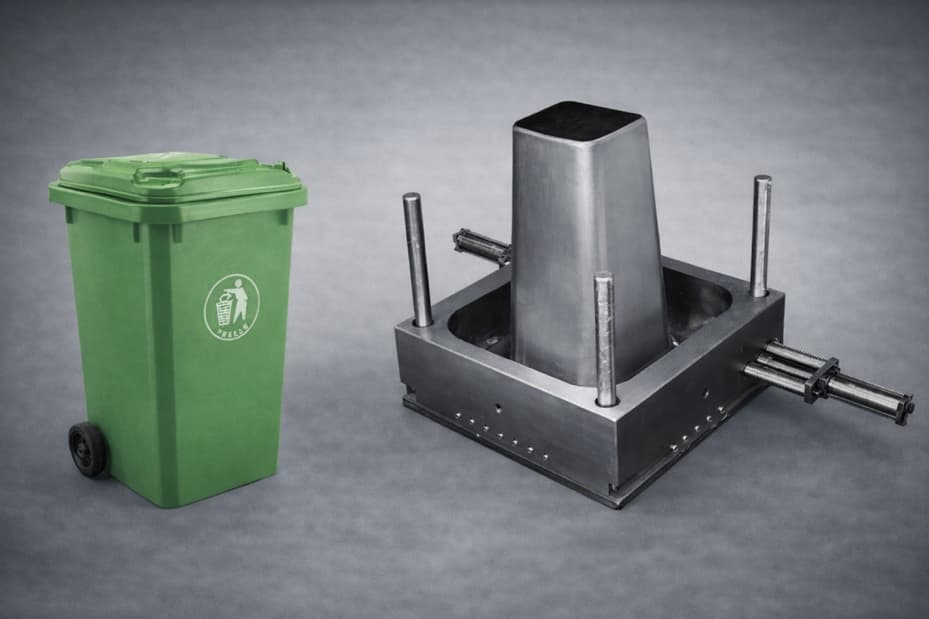

Dustbin Mold
A modular dustbin mold set covering body, lid, and optional pedal components. Designed for multiple size ranges with smooth interior surfaces for cleaning and reliable hinge points for daily use.
Cycle Time
Varies by size
Mold Life
Typical 300,000-500,000 shots
Material
PP / HDPE
Key Features
- Pedal and lid compatibility
- Soft-close lid option
- Smooth interior for cleaning
- Multiple size families
- Anti-odor rim seal option
Best Fit
- • Home and office waste bins
- • Pedal operation for hands-free use
- • Multiple capacity lines
Process Notes
- • Pedal linkage alignment is key
- • Lid/body tolerance affects sealing
- • Surface finish affects cleaning and appearance
Design Focus
- • Pedal mechanism geometry
- • Lid seal contact
- • Inner bucket fit
Technical Specifications
| Capacity Options | 10L / 20L / 50L / 120L |
| Components | Body + Lid + Pedal + Inner Bucket |
| Steel | P20 / 718H |
| Hardness | 28-32 HRC |
| Runner System | Hot Runner |
| Ejection | Various per component |
Applications
Offices
Hotels
Public facilities
Residential use
Modular Dustbin Systems
Dustbins often require coordinated body and lid tooling for consistent fit. This mold set supports multiple sizes with optional pedal components for hands-free operation.
Typical Use
Offices, hotels, public facilities, and residential use where durability and easy cleaning are key.
Lid Fit + Pedal Integration
We focus on lid alignment, hinge geometry, and optional pedal linkage for smooth open/close performance.
Key Engineering Points
- Lid hinge alignment for consistent closing
- Pedal linkage sized for durability
- Multi-size scaling for 10L to 120L ranges
Why Choose Our Dustbin Mold
Complete mold set: body, lid, pedal, inner bucket
Multiple size ranges from 10L to 120L
Optional pedal linkage for hands-free use
Consistent lid fit across size families
Frequently Asked Questions
Common questions about our Dustbin Mold
What size ranges are supported?
Common sizes include 10L, 20L, 50L, and 120L. We can scale the design for other sizes as needed.
Are pedal components included?
Pedal parts can be included as optional tooling depending on your product line.
Is an inner bucket supported?
Yes. We can provide tooling for an inner bucket with smooth, easy-clean surfaces.
Can we choose different surface finishes?
Yes. Matte, gloss, or textured finishes are available depending on your target market.
How is the lid connected?
We use hinge geometry designed for smooth operation and consistent alignment.
