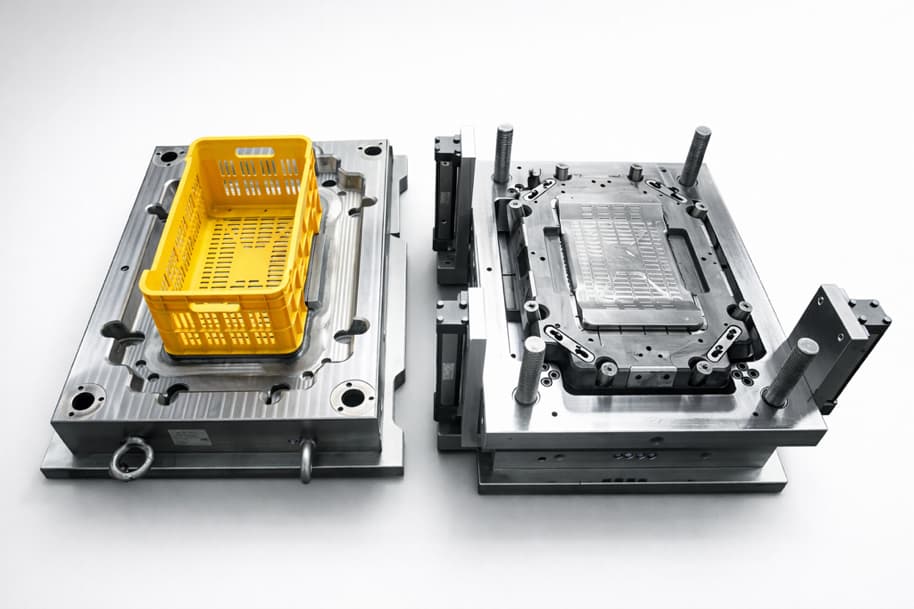

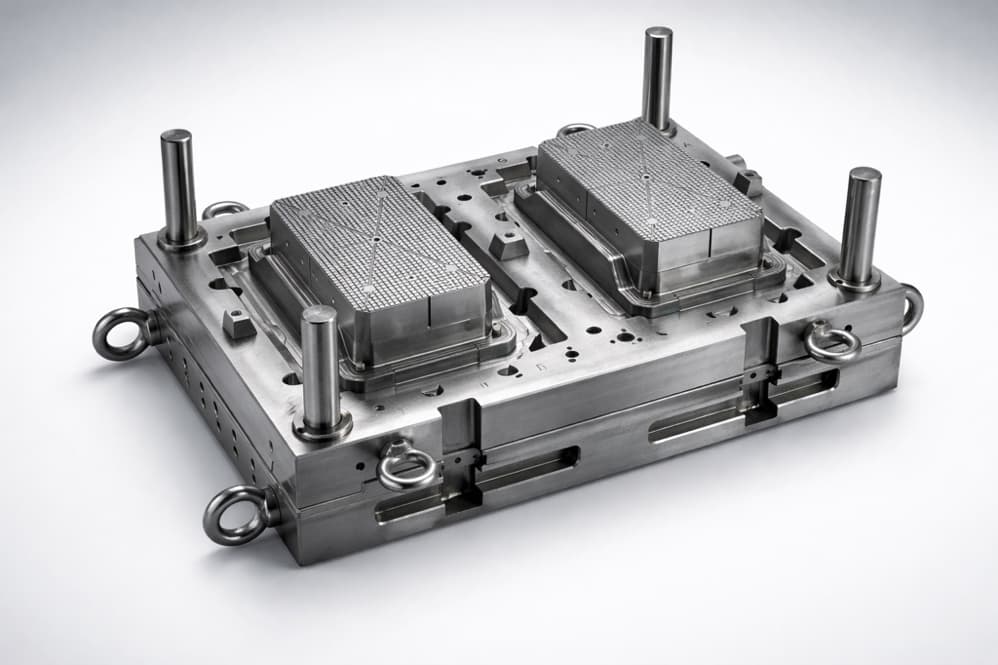

Vegetable Crate Mold
This vegetable crate mold is built for high-load produce handling with vented sidewalls and reinforced corners. The crate design supports airflow during cooling while maintaining stack strength for palletized transport. Suitable for farm packing and cold-chain distribution.
Cycle Time
45-55 seconds
Mold Life
Typical 300,000-500,000 shots
Material
HDPE / PP
Key Features
- Vented sidewalls for airflow
- Reinforced corner posts
- Anti-slip base ribs
- Forklift-friendly footprint
- Food-grade material compatible
Best Fit
- • Cold chain logistics
- • High stacking loads
- • Forklift handling environments
Process Notes
- • HDPE recommended for low-temperature impact
- • Reinforced corners for stacking stability
- • Cooling balance helps control warpage
Design Focus
- • Ventilation ratio
- • Fork entry structure
- • Corner rib reinforcement
Technical Specifications
| Product Size | 600 x 400 x 300 mm |
| Mold Size | 900 x 700 x 600 mm |
| Cavity | 1 cavity |
| Steel | 718H / S136 |
| Hardness | 30-34 HRC |
| Runner System | Hot Runner (Valve Gate) |
| Ejection | Hydraulic Cylinder |
Applications
Farms and packhouses
Wholesale markets
Cold-chain logistics
Food processing
Cold-Chain Ready for Produce Logistics
This crate mold is built for packhouses, wholesale markets, and cold-chain distribution. The vented sidewalls support cooling while reinforced corners maintain stack strength in trucks and cold rooms.
Typical Use
Ideal for farm collection, export packing, and refrigerated transport where airflow and stability are both critical.
Corner Posts + Vented Walls
We balance vent area with corner strength so the crate stays rigid under stack loads while allowing airflow during cooling.
Key Engineering Points
- Reinforced corner posts distribute vertical load during stacking
- Vented sidewalls for airflow without compromising rigidity
- Forklift entry and base ribs sized for pallet movement
- Material guidance for chilled vs. frozen logistics
Why Choose Our Vegetable Crate Mold
EURO pallet compatible (600x400mm) for logistics efficiency
High side ventilation for faster produce cooling
Triple-rib corner design for high stacking (application dependent)
4-way forklift entry with 100mm clearance
Frequently Asked Questions
Common questions about our Vegetable Crate Mold
Is the crate compatible with EURO pallets?
Yes. The standard footprint is 600x400mm, and we can adjust for other pallet systems if required.
Should we use HDPE or PP?
HDPE is preferred for low-temperature impact resistance; PP is suitable for chilled applications with higher stiffness needs.
How high can the crates be stacked?
Stack height depends on load weight and handling. The corner geometry is designed for stable pallet stacking, and we can advise on safe limits.
Can the ventilation pattern be customized?
Yes. We can adjust vent size and layout to suit specific produce and cooling requirements.
Is the base compatible with forklifts and conveyors?
Yes. The base includes reinforced contact areas and forklift clearance for common warehouse handling.
