FeaturedChair Mold

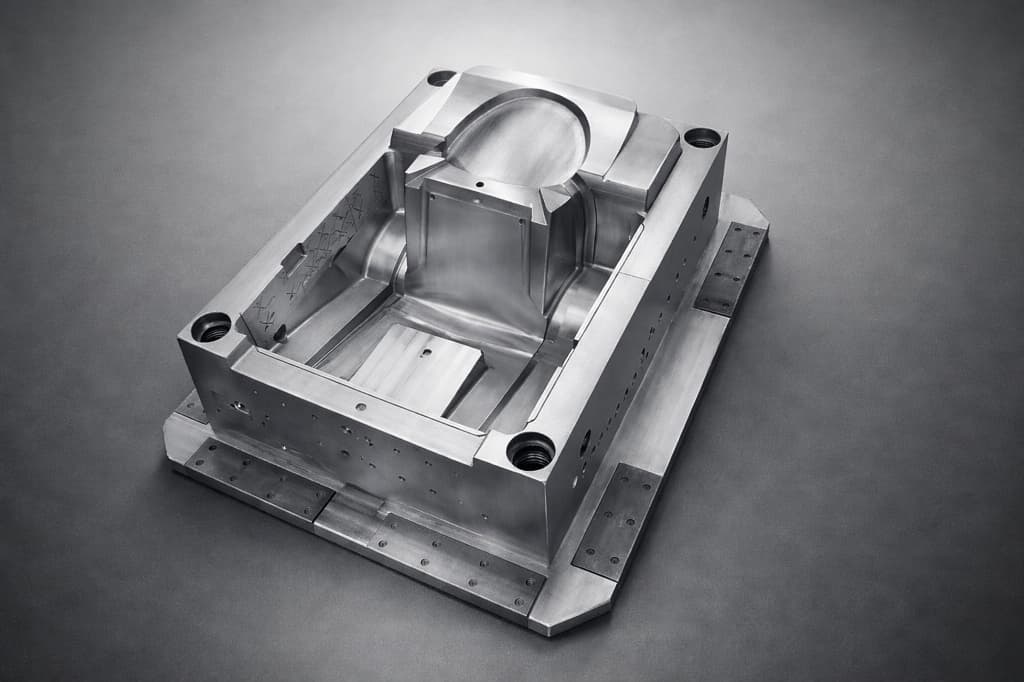

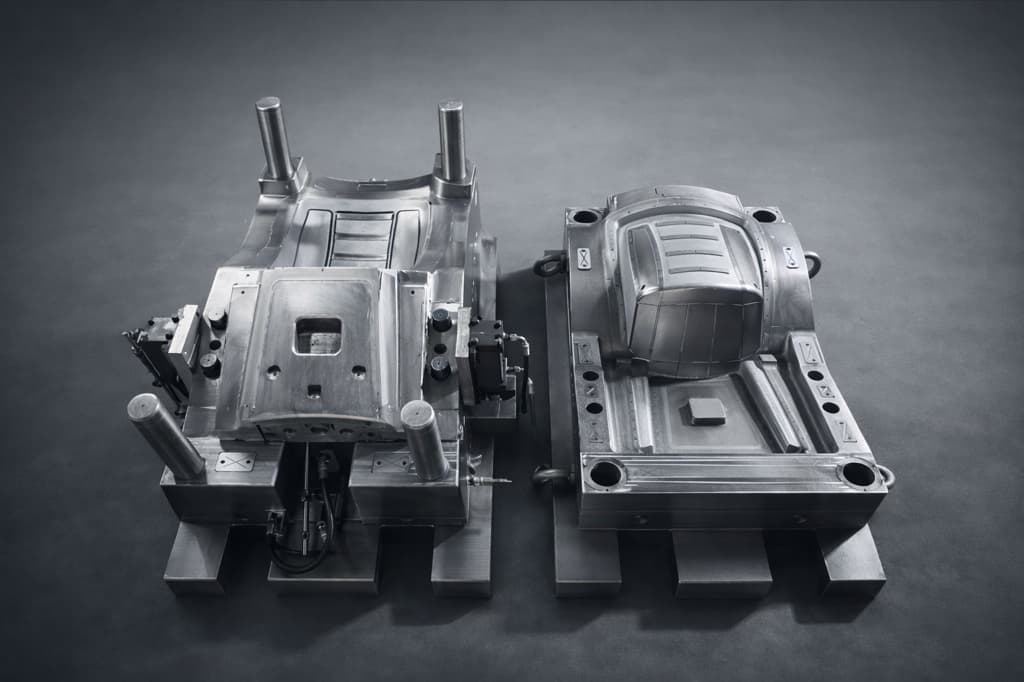

Plastic Armless Chair Mold
An armless chair mold optimized for stable stacking and efficient cycle times. The design balances wall thickness and reinforcement to support everyday seating in indoor and outdoor settings. Ideal for volume programs that need consistent finish and durability.
Cycle Time
45-55 seconds
Mold Life
Typical 300,000-500,000 shots
Material
PP
Key Features
- Stackable footprint
- Reinforced leg junctions
- UV additive compatible
- Anti-slip leg texture
- Smooth seat surface
Best Fit
- • High-volume chair production
- • Outdoor use with UV additives
- • Stackable transport and storage
Process Notes
- • Balanced wall thickness for cycle time control
- • Hot runner helps reduce visible weld lines
- • Stiffness vs weight should be tuned by application
Design Focus
- • Stacking profile
- • Weight optimization
- • Anti-slip feet geometry
Technical Specifications
| Product Size | 420 x 420 x 800 mm |
| Mold Size | 800 x 700 x 900 mm |
| Cavity | 1 cavity |
| Steel | P20 / 718H |
| Hardness | 28-32 HRC |
| Runner System | Hot Runner (Sequential) |
| Ejection | Hydraulic + Air Assist |
Applications
Event seating
Cafeterias
Schools
Outdoor dining
High-Volume Seating Programs
Armless chairs are commonly produced for events, cafeterias, and outdoor dining. This mold focuses on stacking stability, consistent finish, and repeatable cycle times for volume production.
Typical Use
Event seating, schools, rental fleets, and outdoor dining where chairs are stacked and transported frequently.
Leg Junction Reinforcement
Chair failures typically start at leg junctions and seat edges. We reinforce these areas while keeping wall thickness balanced for clean surfaces.
Key Engineering Points
- Leg junction ribs to distribute load
- Stacking stops for aligned stacking
- Cooling layout to reduce sink and warpage
- Surface texture options for scratch resistance
Why Choose Our Plastic Armless Chair Mold
Material savings through FEA-optimized design
45-55 second cycle time for maximum productivity
10-chair stackable design with 65mm per chair
4-point sequential injection eliminates visible weld lines
Frequently Asked Questions
Common questions about our Plastic Armless Chair Mold
How many chairs can be stacked?
Stacking count depends on chair profile and material. We can tune the stacking geometry for your target count.
Is UV resistance available for outdoor use?
Yes. We recommend UV-stabilized PP for outdoor applications.
Can we choose different surface textures?
Yes. We can provide matte, textured, or polished surface finishes.
Which materials are recommended?
PP is standard for cost and durability; ABS is available for higher stiffness if needed.
Can you add branding on the chair?
Yes. We can include embossed or debossed logos on the backrest or seat area.
