Chair Mold

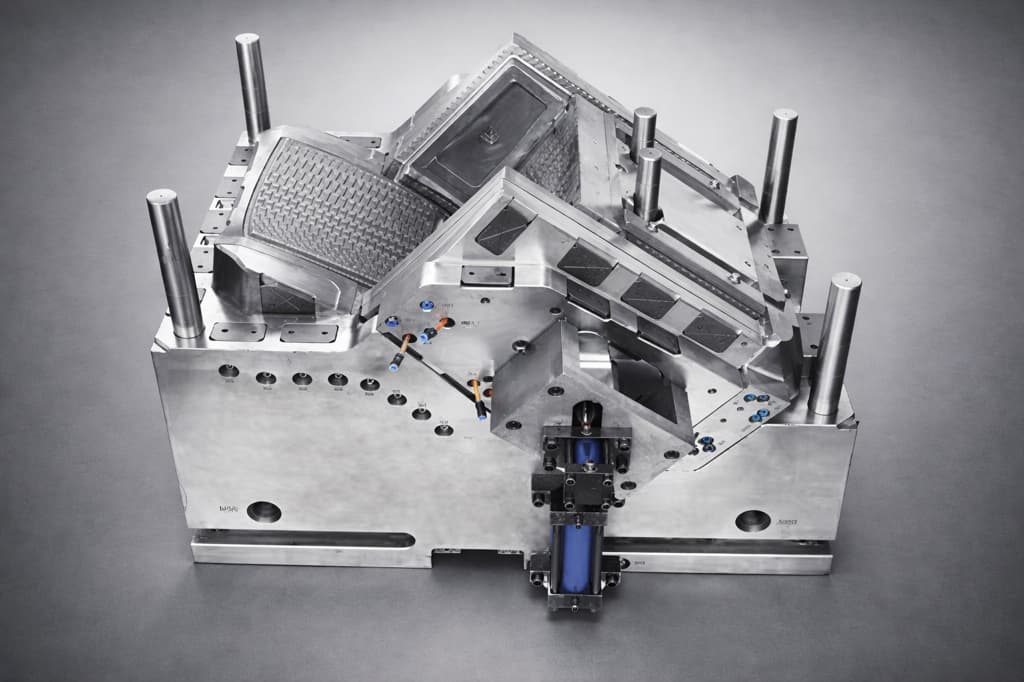

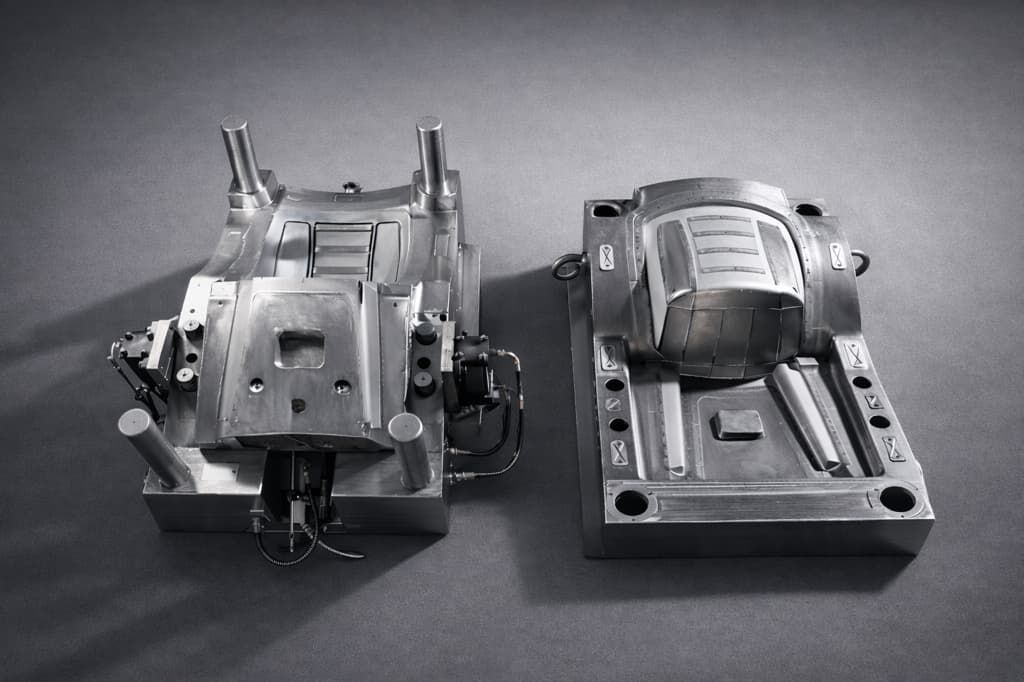

Plastic Armchair Mold
A plastic armchair mold designed for comfort and long service life. Reinforced armrests and backrest geometry improve stability for hospitality and outdoor seating. The surface finish can be tailored for matte or gloss product lines.
Cycle Time
55-65 seconds
Mold Life
Typical 300,000-500,000 shots
Material
PP
Key Features
- Reinforced armrest structure
- Ergonomic backrest curve
- Wide seat profile
- UV additive compatible
- Color matching options
Best Fit
- • Cafe and garden seating
- • Comfort-focused chair lines
- • Premium appearance in plastic seating
Process Notes
- • Surface finish needs consistent polish
- • Armrest zones require reinforcement control
- • Cooling balance helps control sink marks
Design Focus
- • Armrest integration
- • Backrest curve
- • Seat stability
Technical Specifications
| Product Size | 560 x 520 x 820 mm |
| Mold Size | 950 x 850 x 1000 mm |
| Cavity | 1 cavity |
| Steel | 718H / S136 |
| Hardness | 30-34 HRC |
| Runner System | Hot Runner + Gas Assist |
| Ejection | Hydraulic + Air Assist |
Applications
Cafes and terraces
Gardens and patios
Waiting areas
Hospitality seating
Comfortable Seating for Hospitality and Outdoor Use
Armchairs are chosen for comfort and stability. This mold targets reinforced armrests and a supportive backrest for patios, cafes, and waiting areas.
Typical Use
Hospitality seating, outdoor dining, and residential patios where comfort and durability are both required.
Armrest Reinforcement + Backrest Support
We focus on armrest strength and backrest geometry to keep the chair stable under daily use.
Key Engineering Points
- Armrest ribbing to distribute load
- Backrest curve for comfortable support
- Cooling layout around thick sections to reduce sink
Why Choose Our Plastic Armchair Mold
Reinforced armrests for daily seating loads
Ergonomic backrest and wide seat profile
Outdoor-ready with UV additive options
Stackable design for hospitality storage
Frequently Asked Questions
Common questions about our Plastic Armchair Mold
How many armchairs can be stacked?
Stacking count depends on the chair profile and armrest geometry. We can tune the nesting depth to improve stacking.
Is UV resistance available for outdoor use?
Yes. We recommend UV-stabilized PP for outdoor hospitality seating.
Can we choose matte or glossy finishes?
Yes. Surface finish can be selected based on your product line and aesthetic goals.
How do you reinforce the armrests?
We add ribbing and maintain wall thickness in the arm zones to improve load resistance.
Which materials are recommended?
PP is standard for cost and durability; other materials can be considered based on stiffness requirements.
