Basket Mold

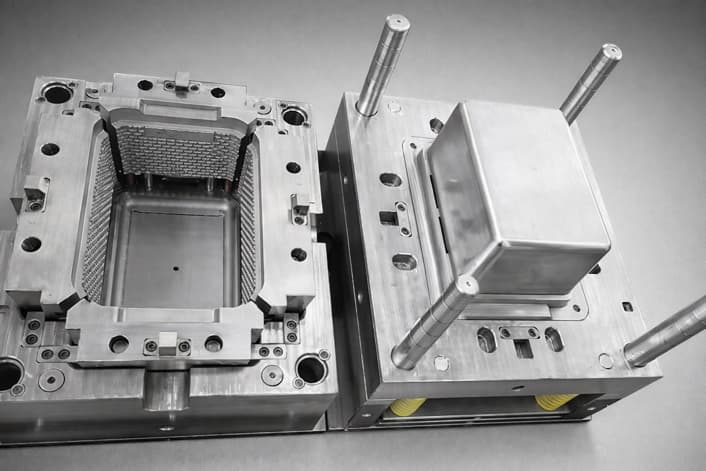

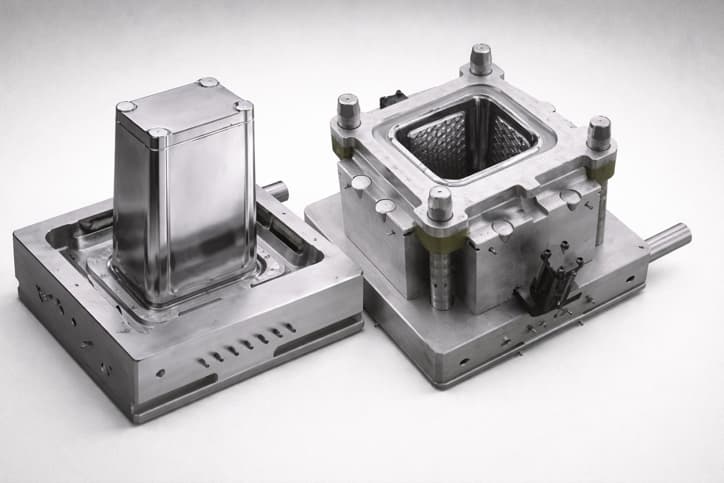

Storage Basket Mold
A storage basket mold designed for organized spaces in homes and workplaces. The geometry supports nesting or stacking depending on size, with optional texture to suit lifestyle product lines. Suitable for multi-size families to cover different storage needs.
Cycle Time
20-25 seconds
Mold Life
Typical 300,000-500,000 shots
Material
PP
Key Features
- Nest/stack geometry
- Optional woven texture
- Integrated handles
- Multiple size family support
- Label area option
Best Fit
- • Home organization product lines
- • Woven texture aesthetic requirements
- • Multiple size families
Process Notes
- • Texture finish selection affects appearance
- • PP material keeps texture sharp
- • Multi-cavity options for volume production
Design Focus
- • Woven surface detail
- • Stackable geometry
- • Integrated handles
Technical Specifications
| Product Size | 350 x 250 x 200 mm |
| Mold Size | 550 x 450 x 400 mm |
| Cavity | 1-2 cavities |
| Steel | P20 |
| Hardness | 28-32 HRC |
| Runner System | Cold Runner / Hot Runner |
| Ejection | Ejector Pin |
Applications
Home organization
Office storage
Warehouse picking
Laundry and bathroom
Designed for Organized Spaces
Storage baskets are used in home, office, and light industrial settings where clean lines and practical handling matter. This mold supports multi-size product families and optional textures to match lifestyle branding.
Typical Use
Closets, bathrooms, office storage, and warehouse picking where baskets are stacked or nested between uses.
Texture + Nest/Stack Geometry
We design the basket to either nest or stack based on your target use case, while keeping texture patterns crisp and easy to demold.
Key Engineering Points
- Draft angles integrated into texture for clean release
- Handle reinforcement to prevent cracking in daily use
- Wall thickness balance to avoid sink marks
- Size family scaling with shared design language
Why Choose Our Storage Basket Mold
Instagram-worthy woven texture patterns
2-cavity design for higher productivity
EDM texturing for premium quality and durability
Complete size family with consistent aesthetics
Frequently Asked Questions
Common questions about our Storage Basket Mold
Can we choose different texture patterns?
Yes. We can provide woven, matte, or smooth finishes depending on your product line.
Is the design nestable or stackable?
We can design for nesting, stacking, or a hybrid depending on your handling needs.
Can we build a size family from one design style?
Yes. We can scale dimensions to create a consistent family across small, medium, and large sizes.
Is a label or logo area possible?
Yes. We can add a flat panel for labels or molded branding.
Which materials are recommended?
PP is common for storage baskets; other materials can be used based on stiffness and finish requirements.
